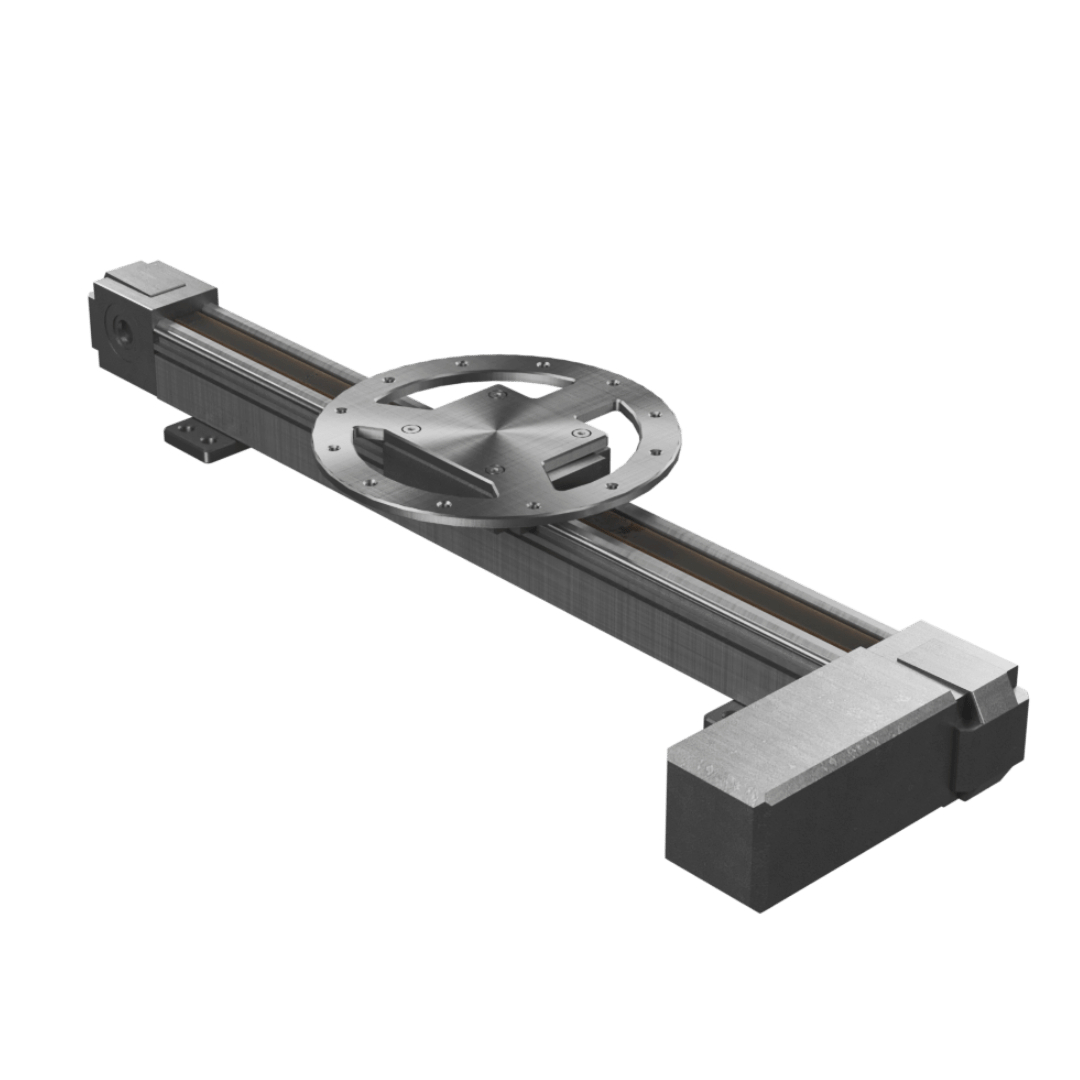

Desktop Sliding Rail

Price range: 249 $ through 349 $

A precision linear motion system designed for use with desktop Delta robots. It provides smooth and accurate positioning, ideal for extending the working range of robotic applications. With G-code control, it ensures effortless integration into automated systems.

Frame

Clear

High-precision motion with 0.02 mm accuracy.
Durable and lightweight design, perfect for desktop robotics.
Supports payloads up to 8 kg for versatile application scenarios.
Adjustable speed and position via G-code commands for precise control.
UART connection for seamless communication and integration.
Ideal for extending the reach of desktop Delta robots.

In the Box

Sliding Rail
12V-2A Power Supply
USB UART TTL for connectivity

Specifications

Parameter	Specification
Accuracy	0.03 mm
Working Space	400 mm
Max Payload	15 kg
Mass	4.5 kg
Max Speed	300 mm/s
Max Acceleration	5 m/s²
Power Supply	24V/3A
Connection	UART, ETHERNET
Control Method	G-code

Sliding Rail G-code Commands

Command	Description	Usage	Parameters
M320	Go To Home	`M320`	– No parameters
M321	Set Speed	`M321 [<value>]`	– [<value>]: Speed in mm/s
M322	Set Position	`M322 [<value>]`	– [<value>]: Position in mm
M323	Disable Stepper Motor	`M323`	– No parameters

Applications

The Desktop Sliding Rail is an essential accessory for extending the capabilities of desktop Delta robots. Its applications include:

Enhancing the workspace for pick-and-place operations.
Supporting extended assembly or material handling workflows.
Facilitating multi-point testing and inspection processes.
Versatile use in research, education, and small-scale manufacturing.
